| Lieu d'origine: | Chine |
| Nom de marque: | GME |
| Quantité de commande min: | 10 PCS |
|---|---|
| Détails d'emballage: | Emballage exporté de cas |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | L / C, T / T, Western Union, Paypal |
| Capacité d'approvisionnement: | 100 000 PCS |
| Taper: | Le type J, K, T, E, N, S, RDT, a adapté aux besoins du client | Plage de température: | 1600℃ maximum |
|---|---|---|---|
| Matériel protecteur de tube: | Acier inoxydable | Matériau de tête: | En aluminium, acier de solides solubles, bakélite, adaptée aux besoins du client |
| Câblage: | 2-wiring, 3 câblage, 4 câblage, câblage 6, adapté aux besoins du client | ||
| Mettre en évidence: | PT100 Duplex RTD Sensor,6-wire RTD Sensor,Mineral insulated RTD Sensor |
||

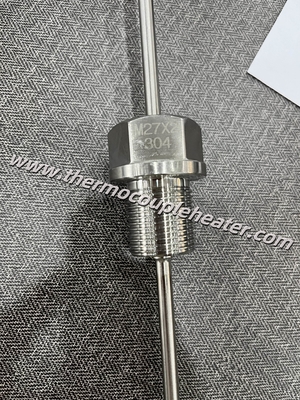

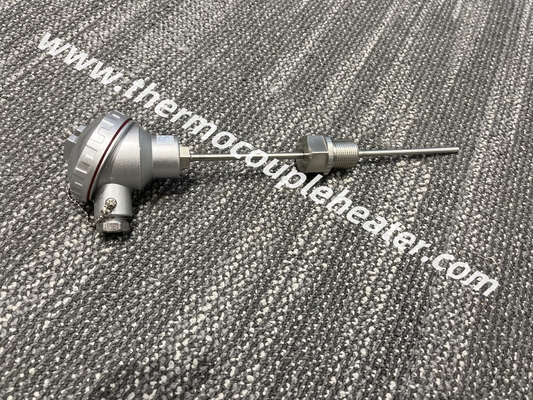

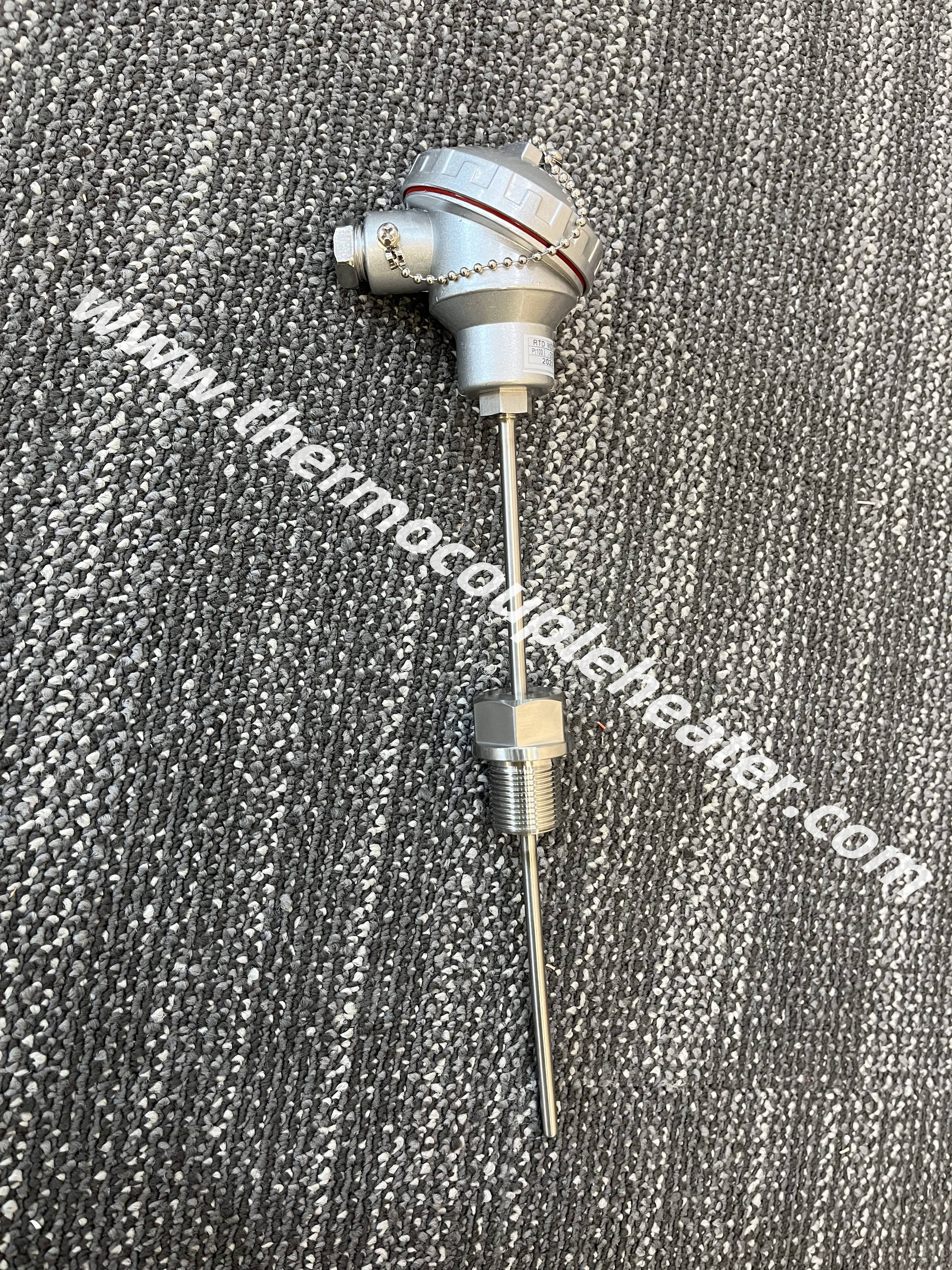

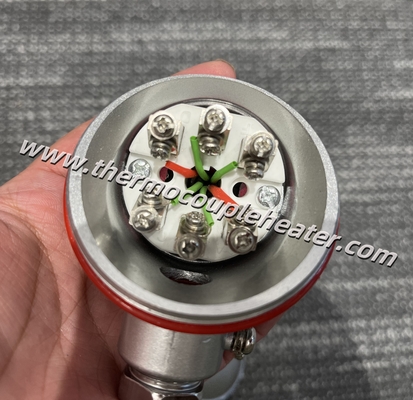

RTD Sensor Duplex PT100 Double Elements 6-wire Mineral insulated Probe
Product Features:
♦ Easy to install, several optional testing range
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Quick response, high accuracy
♦ Good long-term stability, low energy consumption,smart
Applicable Scope
♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
Technical Index
| Sensor | Type J, K, T, E, N, S, PT100, PT1000, customized |
| Thermowell | Available |
| Signal line specification | 2-wiring, 3-wiring, 4-wiring, 6-wiring, customized |
| Accuracy | Class 1, Class 2 |
| Testing range(°C) | Max 1600℃ |
| Probe diameter | Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm, customized |
| Response Time | T=50°C 2.3s;T=90°C 5.4s |
| Ambient Temperature | -40~+85°C |
| Storage Temperature | -40~+125°C |
| Environmental Protection | IP65 |
