Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Certifications
Chine Wuhan Global Metal Engineering Co., Ltd certifications
Chine Wuhan Global Metal Engineering Co., Ltd certifications
Examens de client
Vous des types de GME réalisez un travail vraiment bon, j'appréciez votre intégrité, professionnalisme, et dévouement pour travailler.

—— Tim

Il a été travail tout à fait agréable avec GME, particulièrement j'aiment votre bonne qualité, sur la livraison de temps et le prix raisonnable.

—— Luis

GME a été toujours utile, professionnel, et la qualité du produit sont toujours cohérente et satisfaisante.

—— Jimit

Je suis en ligne une discussion en ligne

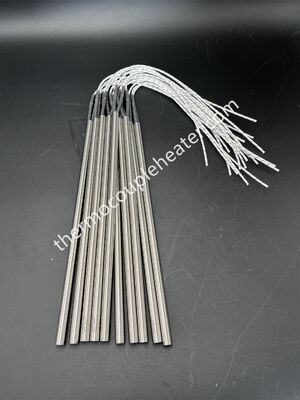

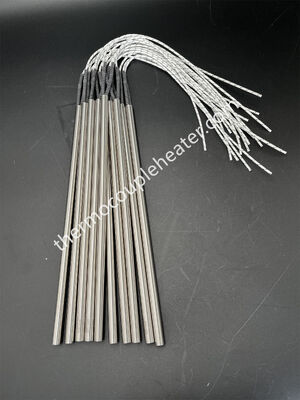

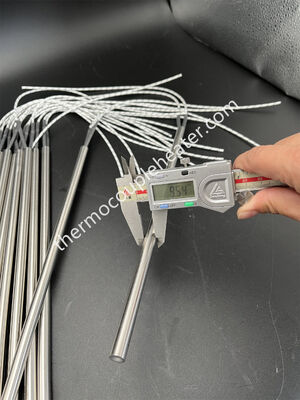

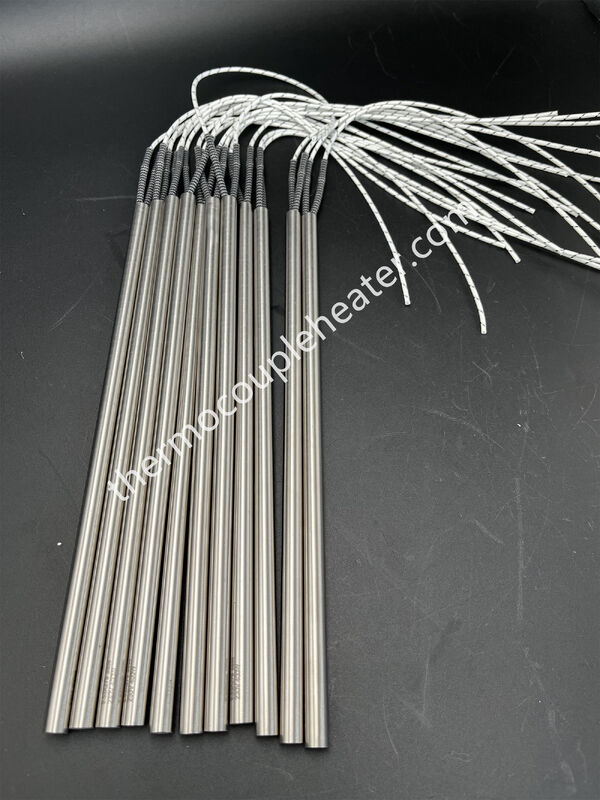

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater
Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Image Grand :  Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: GME
Certification: ISO/CE/UL/CSA
Conditions de paiement et expédition:
Quantité de commande min: 50 pièces
Prix: USD 1-100 FOB Shanghai/pc
Détails d'emballage: Boîtes ou cartons en bois
Délai de livraison: 7-15 jours ouvrables
Conditions de paiement: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Capacité d'approvisionnement: 10000 pièces/mois
Description de produit détaillée
Fil de plomb: silicium, fibres de verre Matériel de Shealth: SS304, SS321, SS316
Couleur: Biack et blanc Tolérance de puissance: +5%, -10%
Application: Huile, eau ou autre liquide, etc. Source d'alimentation: Électrique
Tension: 12-480V Dimension (l*l*h): Personnalisable
Taper: Réchauffeur d'air, appareils de chauffage de Cartidge Isolation: Poudre de MgO
Mettre en évidence:

Stainless steel cartridge heater

,

Industrial electric rod heater

,

Resistance heating element cartridge

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater



Description:


Cartridge heater is made of single head, electric heating tube to tube is to protect the shell (including not only the head of the stainless steel electric heating tube, copper pipe, all kinds of imported steel), along the central axis uniform spiral tube of high quality electric thermal bonding wire, nickel chromium wire, iron chromium alloy fever), and then fill the gap part closely with good heat resistance, thermal conductivity and the crystallization of the insulation of magnesia powder, with silicone seal on both ends of the pipe, in the other process.






Specification:



A.Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.


B.Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.



C.According to different use requirements,choose the grade of heating wire,magnesium rod and
pipe.

D.Do not pull or bend the wire forciby.

E.The vicinty of the wire should be controlled below 220℃.


Product Name
right angle cartridge heater
Material
stainless steel
Color
nickel white
Standard
CE/ISO
Grade
SUS201, SUS304, SUS316,
Power
electric
Voltage

customized

Used
air heater,water heater



Application:



* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding



Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater 0
